Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Product Name: | Bag filter | Application: | Drinking water |
|---|---|---|---|
| Inlet & outlet diameter: | 6 inch | Flow rate: | 800 m3/Hr |
| Material: | SUS 304/316/316L | Connection mode: | Flange |
| Working temperature: | 0~250 ℃ | Filtration degree: | 0.5~1000 micron |
| Working pressure: | 0.6Mpa | ||
| Điểm nổi bật: | automatic water filter,Industrial Bag Filter |
||

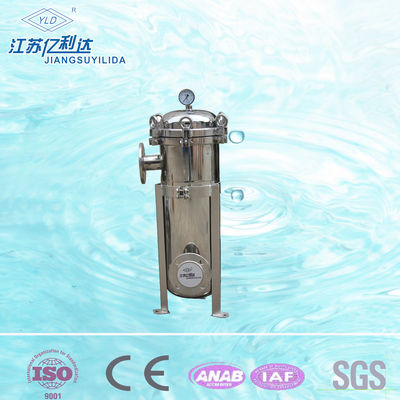

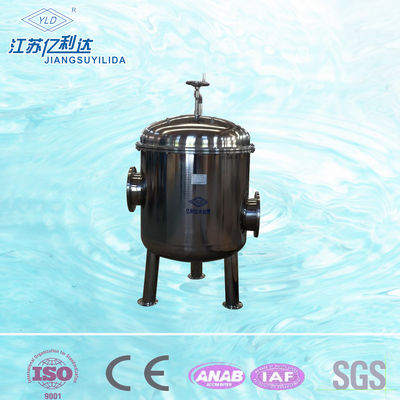

Food Industrial Bag Filter For Water Treatment , Stainless Steel Housing Sock
Structure and working principle
Bag type filter is a pressure filtration device, which is mainly consists of filtration cylinder, cylinder
cover and fast open structure, stainless steel strengthen filtration bag, and etc. When filtrate flows
from side entrance of filter shell into the pipe bag, the bag itself is installed inside the enhanced
basket, liquid penetrates bag with required fineness grade that can be provided with qualified filtrate, impurities and particles were intercepted by bag. It is very easy to replace the filter-bags, there is
hardly no material to be consumed.
Specifications: (The practical dimension could be customized )
|
Quantity of the bags |
Wall Thickness |
Bag Specifications |
Filtration Area |
Flow Rate (T) |
Diameter |
|
1 |
1.5 |
102*410 |
0.13 |
12 |
25 |
|
1 |
1.5 |
102*810 |
0.26 |
15 |
25 |
|
1 |
1.5 |
180*410 |
0.23 |
20 |
50 |
|
1 |
1.5 |
180*410 |
0.46 |
40 |
65 |
|
2 |
2 |
180*810 |
|
50-80 |
80 |
|
3 |
3 |
180*810 |
1.38 |
90 |
100 |
|
4 |
3 |
180*810 |
1.8 |
120 |
100 |
|
5 |
3 |
180*810 |
2 |
150 |
125 |
|
6 |
3 |
180*810 |
2.3 |
180 |
150 |
|
8 |
3 |
180*810 |
2.5 |
240 |
150 |
|
9 |
4 |
180*810 |
2.76 |
360 |
200 |
Features:
01.Small probability for side-bag leakage , which effectively guarantee the filtering quality.
02.Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost
and obvious
energy saving .
03.Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.
04.Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.
05.Based on the working principle and structure of Bag type filtering system,which is convenient to
replace the
filter bag and without cleaning,and time saving and labor saving.
06.Filtration bag could be use repeated after cleaning to save cost.
07.bag filter application scope is broad, with flexible operation and multiple installation.
Description:
- ASTM SS304 or SS316 stainless steel iron construction for best chemical compatibility and corrosion resistance.
- Two styles of surface finish (both inside and outside): Mirror-polish or Bead blasted
- Patent design to prevent bypass leakage.
- Multi-choice of seal material to meet different needs: Silicon rubber, EPDM rubber, Viton rubber;
- 150 PSI (1.0Mpa) pressure available
- Standardised flanges and threads: DIN, BSP, ANSI
- Micron Ratings: 1-100micron
- Custom designs available.
Accessories included: air release valve, pressure gauge and one 5 micron bag filter
Packaging: carton or wooden case
Applications:
1, nanofiltration (NF), ultrafiltration (UF), RO (RO), electrodialysis (EDI) system security filtering,
2, medicine injection, big transfusion, eye drops, Chinese herbal medicine, biological agents such as
filtering liquor extraction, purification and concentration,
3, electronics, microelectronics, semiconductor industry with high pure water pre filtering,
4, oilfield waterflooding, back to the boiler make-up water, chemical reagent, liquid organic products, high purity chemicals, strong medicine such as filtering,
5, drinking pure water, mineral water, juice, tea beverages, health drink filtering,
6, liquor, wine, beer, yellow wine and other ratafia filtering, pure draft beer aseptic filtration (replacing pasteurising);
7, production and living in wastewater treatment and water recycling process of pretreatment filter or
security filtering,
8 and other such as biological engineering, oil refining, printing and dyeing, textile industry of water and wastewater treatment, scientific experiment filtration and so on.
FAQ:
01. What is the capacity (m3/hour)you required for this equipment?
02. What is the material for this bag filter?
Stainless steel (SS304/SS316)?
03. What is the working pressure for it?
04. What is the filtration degree?
10 micron or 200 micron?
Details:
